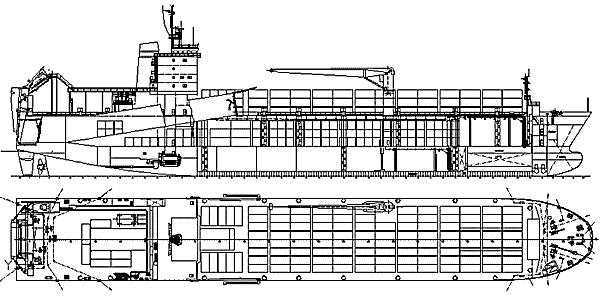

Project No. 29 is a high-class modern Ro-Ro cargo vessel designed to carry on International voyages either containers (40ft/20ft) and trailers or other bailed cargos with a maximum load of 75 t. The ship have two medium speed 4 st, non- reversible main diesel engines, two CP propellers, bulbous bow, two side bow thrusters. Engine room located aft, separate spaces for fuel oil handling, stores and workshops. The stern slewing ramp, with rotating +/-350 PS & SB allow loading of 40ft/20ft containers by using lift trucs and standard trailers. The ship able carry 40ft/20ft containers up to no. 900 of 20ft or 80 equipment's of weight 75 tons or 60 equipment's of weight 50 tons and 50 equipment's of weight 20 tons or combination of them. Fire fighting and damage control equipment complied with SOLAS 1974. Crew accomodation spaces and cabins are located on superstructure decks for 35 persons.
MAIN PARTICULARS
Length max.
173,6 m
Speed
20 kts
Breadth
25,0 m
Number of berths
35
Depth
18,3 m
Class BV HULL Ro-Ro cargo ship
ICE CLASS IC AUT-UMS
UNRESTRICTED NAVIGATION
Draught
7,7 m
Deadweight
11350 t
* Fore-part contract design and working documentation was made
