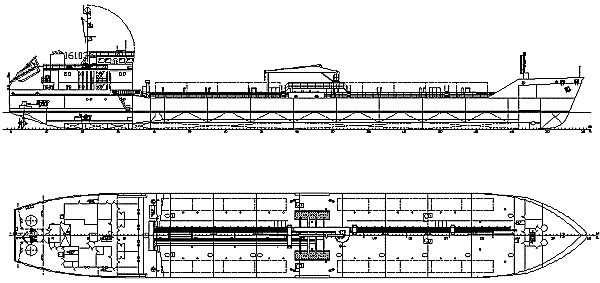

Project No: 16103 Shallow Draught Tanker DW 3600 t      Product tanker with one deck, eight cargo and two slop tanks, double rudder propeller thruster, aft machinery and superstructure, double bottom, designed for transport of two kind of oil product. Provision is made for intake about 18 containers on upper deck. MAIN PARTICULARS Length max. 112,4 m     Quantity of cargo holds 8 Breadth 16,5 m     Capacity of cargo holds 4700 m3 Depth 6,0 m     Cargo pumps, m3/h                      2х200, 1х50 Draught 3,5 m     Speed 10,0 kts Deadweight 3600 t     Number of berths 12         Class GL 100 A5 KE * Class project
